Mako Central Management System (CMS)

The Mako CMS is a "single pane of glass" cloud application for managing and monitoring secure, reliable distributed networks of any scale formed by Mako devices. Mako devices are enterprise-grade physical or virtual network devices that can only be managed via the Mako CMS. Each Mako device arrives preconfigured and uses a patented communications protocol to acquire configuration settings from the Mako CMS and to report data, such as cellular usage.

• PCI-certified cloud management and monitoring for distributed networks
• Enforce multi-factor authentication and role-based user access permissions
• Establish secure connections and segmented zones using SD-WAN and VLAN
• Connect to encrypted cloud VPNs with a few clicks and without static IP addresses
• Customize WAN failover behavior from data-saving to seamless fast failover
• Deploy configuration templates, including complex firewall rules, to any number of sites at once
• Personalize automated alerts and actions
• Review enterprise reports and visualizations
• Run device diagnostics
• Securely access local services from remote locations
• Reduce the need for site visits and the risk of physical tampering
• Easily demonstrate PCI DSS compliance

Mako 6600-M Security Gateway

Provide secure, reliable SD-WAN connectivity for distributed sites, featuring next-gen firewall, VLAN, Mako VPN Cloud, 4G LTE cellular failover, 802.11ac Wi-Fi 5, and more.

• PCI-certified SD-WAN and VLAN connectivity for remote sites or secure zones
• Fully cloud-managed via the Mako CMS with no factory reset button
• Optimized for fast failover and offers the widest range of WAN connection options
• 1x 1 GbE WAN port (xDSL support optional)
• 4x 1 GbE LAN ports (1x configurable as WAN)
• 1x 1 Gbps SFP WAN/LAN port (for fiber, etc.)
• Built-in dual-SIM 4G LTE cellular
• Dual-band 802.11ac Wi-Fi 5 (up to 4 SSIDs per band)
• Next-gen firewall, including IDS / IPS, content filtering, and more
• OpenVPN server for remote access
• Sealed, tamper-proof case with no moving parts and high heat tolerance

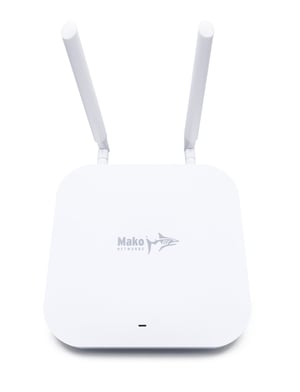

Mako 5600 Security Gateway

Provide secure, reliable SD-WAN connectivity for distributed sites, featuring next-gen firewall, VLAN, Mako VPN Cloud, 5G or 4G LTE cellular failover, 802.11ax Wi-Fi 6, and more.

• PCI-certified SD-WAN and VLAN connectivity for remote sites or secure zones
• Fully cloud-managed via the Mako CMS with no factory reset button
• Optimized for fast failover and offers the latest performance options
• Configurable as either a security gateway or an access point
• 1x 2.5 GbE WAN port (LAN in access point mode)
• 4x 1 GbE LAN ports (1x configurable as WAN in security gateway mode)
• Built-in dual-SIM 5G or 4G LTE cellular
• Dual-band 2 x 2 MIMO 802.11ax Wi-Fi 6 (up to 4 SSIDs per band)
• Powered via either PoE or optional power adapter
• Next-gen firewall and OpenVPN server in security gateway mode

Mako 4600 Access Point

Extend wireless range, improve broadcast/reception positioning, and upgrade wireless performance at distributed sites.

• PCI-certified SD-WAN and VLAN connectivity for private and guest wireless networks
• Fully cloud-managed via the Mako CMS with no factory reset button
• Smaller footprint and flexible mounting options
• Configurable as either a security gateway or an access point
• 1x 2.5 GbE WAN port (LAN in access point mode)
• 1x 1 GbE LAN port
• Dual-band 4 x 4 MIMO Wi-Fi 6 (up to 4 SSIDs per band)
• Powered via either PoE or optional power adapter
• OpenVPN server in security gateway mode

Mako offers additional access point models, including an outdoor model with an IP67 rating.

Mako 8600 VPN Concentrator

Connect thousands of remote sites to a central network, third-party services, or each other using Mako VPN Cloud SD-WAN technology for resilient, encrypted data transmission.

• PCI-certified SD-WAN and VLAN connectivity for distributed networks
• Fully cloud-managed via the Mako CMS with no factory reset button
• Maximum performance and reliability; optimized for High Availability
• Rackmount and virtual options
• 1x 1 GbE WAN port
• 7x 1 GbE LAN ports (1x configurable as WAN)
• 4x 10 Gbps SFP+ WAN/LAN ports (optional)
• Up to 850 Mbps VPN throughput and 8,000 concurrent VPNs
• Support for IPsec and BGP

Mako offers several VPN concentrator models to meet a range of needs.

Mako 1048-SW/P 48-port Managed Switch

Build fully managed, secure local networks of any size at distributed sites.

• PCI-certified VLAN switching for distributed sites
• Fully cloud-managed via the Mako CMS with no factory reset button
• Fine-grained control of every port
• 48x 1 GbE LAN ports with PoE+
• 4x 10 Gbps SFP+ ports
• 104 Gbps switching capacity
• 410 W PoE power budget
• Desktop or rackmount installation

Mako also offers 24-port and 8-port managed switch models.
